Thermal expansion tester MP-T27.10
Thermal expansion tester MP-T27.10Thermal expansion tester MP-T27.10Thermal expansion tester MP-T27.10

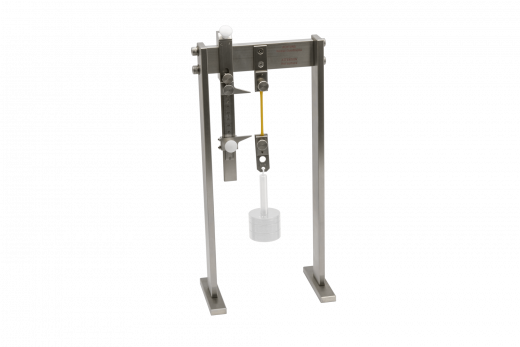

Thermal expansion tester
MP-T27.10

according IEC 60811-507, DIN EN 60811-507, VDE 0473-811-507
  Hotline for questions: +49 7951 91 50-99 Datasheet Contact

For determining the elongation behavior of cross-linked materials, such as cables, insulated wires and fiber optic cables, at elevated temperatures.

  • Functions

Scope of delivery:
2 x stand, with feet and traverse for holding the clamping device,
1 x clamping device for holding the sample, with knurled screw,
1 x measuring scale with height adjustment,
1 x holding device with knurled screw for holding the weight carrier, mass 51 g, exerted load 0.5 N

Note:
Weight supports and load weights are not included in the scope of delivery!

Characteristics

Application:
  • Condition of materials
Method:
  • Temperature resistance
Norm:
  • DIN EN 60811-507
  • IEC 60811-507
  • VDE 0473-811-507
