Access and object probe
MP-100.04G
Access and object probe
MP-100.04GAccess and object probe
MP-100.04GAccess and object probe
MP-100.04G

Access and object probe
MP-100.04G

according VDE 0470, part 2, pic. 4, probe C resp. IEC/EN 61032

Additional standards: VDE 0470 part 1 resp. IEC/EN 60529 and IEC/EN 60034-5

Access and object probe to prove the protection of people against access to dangerous parts and against access with a tool. In addition, the probe is also used to determine the degree of protection of housings against the penetration of solid foreign bodies ≥ 2.5 mm.

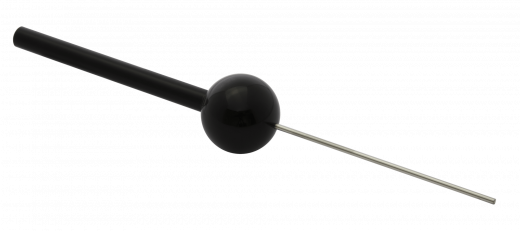

The test probe has a 100 mm long, ground metal test rod Ø 2.5 mm and a stop surface of Ø 35 mm. The handle and the stop surface are made of plastic. There is a 4 mm receptacle conductively connected to the probe for contact- and continuity checks.

  • Equipment
  • Service

Tension- and Compression Force Meter
MP-P10.34

with linear scale from 0 ... 10 N for precise determination of the tensile and compressive force

Details

Tension- and Compression Force Meter
MP-P10.35

with linear scale from 0 ... 50 N for precise determination of the tensile and compressive force

Details

Tension- and Compression Force Meter
MP-P10.36

with linear scale from 0 ... 100 N for precise determination of the tensile and compressive force

Details

Continuity Signaler
MP-100.09B

according VDE 0700, part 1 resp. IEC/EN 60335-1

Details

Wooden case
MP-100.15Z

Sturdy wooden case with foam insert for safe storage

Details

Tension- and Compression Force Meter
MP-100.25A

For determining the tensile and compressive force in connection with acces probes.

Details

Adapter
MP-P10.61

∅ 12 mm / ∅ 10 mm

Details

Large storage case
MP-100.13Z

for safe transport and storage of the test probes

Details

DAkkS calibration
MP-100.01Z

according to ISO/IEC 17025

Details

ISO/Factory calibration
MP-100.06Z

according to ISO 9001

Details

Characteristics

Norm:
  • IEC/EN 61032
  • IP code
  • VDE 0470
