Access and object probe
MP-P10.26
Access and object probe
MP-P10.26Access and object probe
MP-P10.26

Access and object probe
MP-P10.26

with compression spring and force scale 3 N - according VDE 0470, part 2, pic. 4, probe C resp. IEC/EN 61032

Additional standards: VDE 0470 part 1 resp. IEC/EN 60529 and IEC/EN 60034-5

Access and object probe to prove the protection of people against access to dangerous parts and against access with a tool. In addition, the probe is also used to determine the degree of protection of housings against the penetration of solid foreign bodies ≥ 2.5 mm.

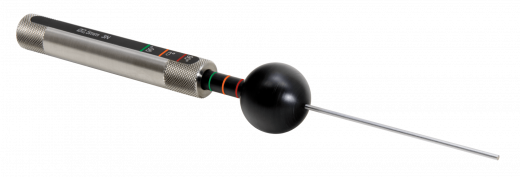

The test probe with compression spring and force scale 3 N has a 100 mm long, ground metal test rod Ø 2.5 mm and a stop surface of Ø 35 mm made of plastic.

  • Equipment
  • Service

Wooden case
MP-100.15Z

Sturdy wooden case with foam insert for safe storage

Details

Large storage case
MP-100.13Z

for safe transport and storage of the test probes

Details

ISO/Factory calibration
MP-100.04Z

according to ISO 9001

Details

Characteristics

Norm:
  • IEC/EN 61032
  • IP code
  • VDE 0470
