Children Joint Finger Probe MP-100.05A
Children Joint Finger Probe MP-100.05AChildren Joint Finger Probe MP-100.05AChildren Joint Finger Probe MP-100.05A

Children Joint Finger Probe
MP-100.05A

Access probe to access protection of children between the ages of 36 months and 14 years.
  Hotline for questions: +49 7951 91 50-0 Datasheet Contact

In Accordance with VDE 0470, part 2, pic. 12, probe 18 resp. IEC/EN 61032.

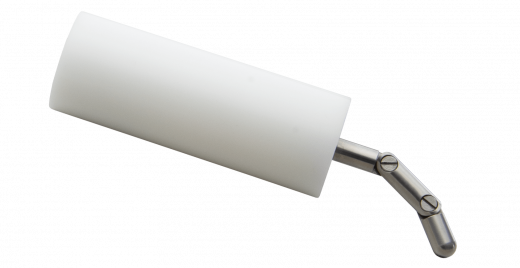

The joint parts of the finger Ø 8,6 mm are made of stainless steel. The handle and the arm extensions consist of polyamide. the links can be positioned at a right angle.

For contact- and continuity checks a 4 mm receptacle is integrated at the handle and at the arm extensions. This is conductively connected to the finger probe. After the removal of the protection cover, the arm extensions can be screwed onto the finger probe.

Note: The arm extensions must be ordered separately!



  • Equipment

Arm extension MP‑100.05B

for the Children Joint Finger Probe MP‑100.05A

Details

Continuity Signaler MP-100.09B

according VDE 0700, part 1 resp. IEC/EN 60335-1

Details

Wooden case MP-100.15Z

Sturdy wooden case with foam insert for safe storage

Details

Wooden case MP-100.16Z

Sturdy wooden case with foam insert for safe storage

Details

Characteristics

Norm:
  • IEC/EN 61032
  • VDE 0470
