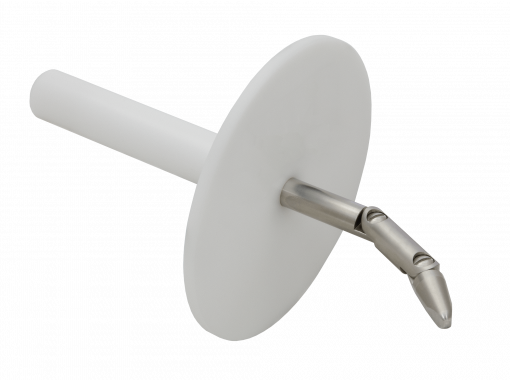

Similar design of test probe B according to IEC 61032, but additionally with a round stop plate with a diameter of 125 mm.
The distance between the tip of the test finger and the stop plate is 100 mm.
Access probe for demonstrating the protection of people against access to dangerous parts and for demonstrating protection against access with one finger, especially for kitchen machines.
The joint parts are made of stainless steel. The handle and the stop plate are made of polyamide. According to the regulation, the two links can be angled by 90 degrees. For the contact and continuity test, a 4 mm socket is integrated on the handle, which is conductively connected to the joint finger.
Continuity Signaler
MP-100.09B
according VDE 0700, part 1 resp. IEC/EN 60335-1
Tension- and Compression Force Meter
MP-100.25A
For determining the tensile and compressive force in connection with acces probes.
Connection set
MP-100.25B
for the Tension- and Compression Force Meter MP-100.25A
Characteristics
- IEC/EN 60335
- VDE 0700
