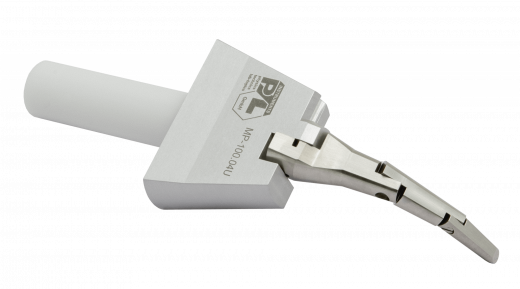

Joint Finger Probe UL
MP-100.04U

Joint Finger Probe UL
MP-100.04U

according to UL standard UL 153, UL 197, UL 507, UL 508, UL 1026, UL 1082, UL 1741, UL 2251, UL 8750, IEC 62368-1

Access probe to prove the protection of people against access to dangerous parts according to the UL standard.

The joint parts and the stop surface are made of stainless steel. The handle is made of polyamide. Both fingers can be angled 90 degrees. A 4 mm connection socket for the contact and continuity test is integrated on the handle, which is conductively connected to the joint finger.

  • Equipment

Continuity Signaler MP-100.09B

according VDE 0700, part 1 resp. IEC/EN 60335-1

Details

Wooden case MP-100.15Z

Sturdy wooden case with foam insert for safe storage

Details

Tension- and Compression Force Meter MP-100.25A

For determining the tensile and compressive force in connection with acces probes.

Details

Connection set MP-100.25B

for the Tension- and Compression Force Meter MP-100.25A

Details

Characteristics

Norm:
  • IEC 62368
  • UL 1026
  • UL 1082
  • UL 153
  • UL 1741
  • UL 197
  • UL 2251
  • UL 507
  • UL 508
  • UL 8750
