For determining the tensile and compressive force in connection with acces probes.

The force measuring device is a hand-held device up to 200 N. The force can be determined in the units N, kg and lb.

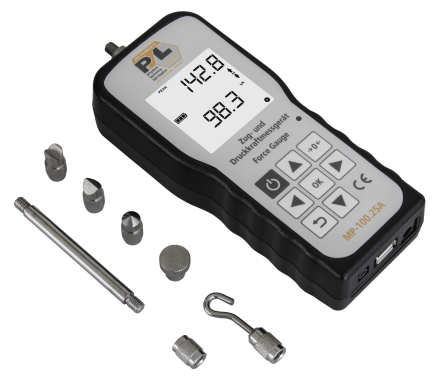

The scope of delivery of the measuring device MP-100.25A includes various adapters in different forms.

These can be screwed onto the device and thus offer the optimal solution for surfaces of different types when measuring tensile and compressive forces. An extension rod with a length of 65 mm is included for measurements in hard-to-reach places.

The scope of delivery of the MP-100.25A force measuring device includes the following adapters: flat head adapter, hook adapter, ball head adapter, chisel head adapter and a notch head adapter, the hook adapter being used for tensile force measurements.

  • Functions
  • Technical data
  • Equipment
  • Service

Further device features:
- Device for attachment to test stands
- Peak measurement
- Power supply via charging adapter
- Evaluation via USB interface
- quick display of measured values
- evaluation software (on request)


Connection set MP-100.25B
Test fingers and object probes can be used with the connection set MP-100.25B to the Tension- and Compression Force Meter MP-100.25A can be connected.

Masuring range 0 ... 200 N
Resolution 0,1 N
Pressure calibration 1 Mpa
Load cell integrated load cell mit M6 connection
Measuring range 1 ... 100 % the full scale
Masurement accuracy ± 0,5 %
Units N, kg, lb
Display

LCD

Operating temperatur

10 °C ... 30 °C

Relative hunidity

15 ... 80 % relative humidity

Weight

1 kg



Connection set
MP-100.25B

for the Tension- and Compression Force Meter MP-100.25A

Details

ISO/Factory calibration
MP-100.03Z

according to ISO 9001

Details

ISO/Factory calibration
MP-100.03Z

according to ISO 9001

Details

Characteristics

Application:
  • Contact check
Method:
  • Pressure force measurement
  • Tensile force measurement
