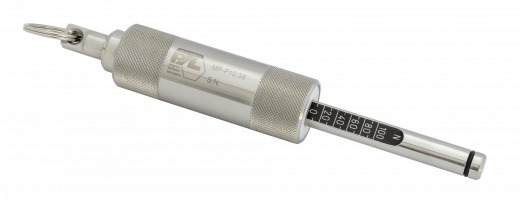

Tension- and Compression Force Meter
with linear scale from 0 ... 100 N for precise determination of the tensile and compressive force
The analog tensile and compressive force measuring device is suitable for the determination of tensile and compressive forces.
The force display 0 ... 100 N is scaled in 10 N steps.
The ∅ 12 mm mandrel and the key ring can be adapted with a variety of object and access probes.
The key ring is used to determine tensile forces. Pressure forces are applied via the ∅ 12mm mandrel.
The handle of the tension and compression force measuring device is made of stainless steel.
IEC-Joint Finger Probe
according with VDE 0470,
part 2, pic. 2, probe B
resp. IEC/EN 61032
Rigid Finger Probe
according VDE 0470, part 2, pic. 7, probe 11 resp. IEC/EN 61032
according VDE 0860, pic. 4 resp. IEC/EN 60065
Large storage case
for safe transport and storage of the test probes
- Pressure force measurement
- Tensile force measurement
